Aegean 40 IO-10ft 4in WA Cabin
Model: Aegean 40 LC IO-10ft 4in WA Cabin
Design: C090B

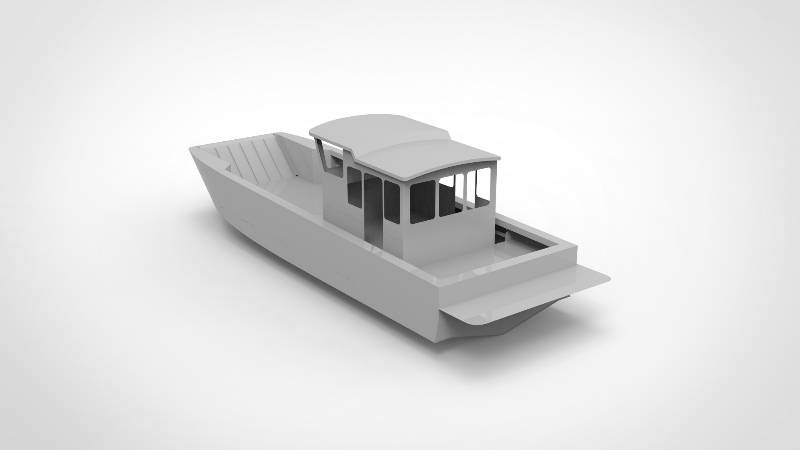

  • Photo 630

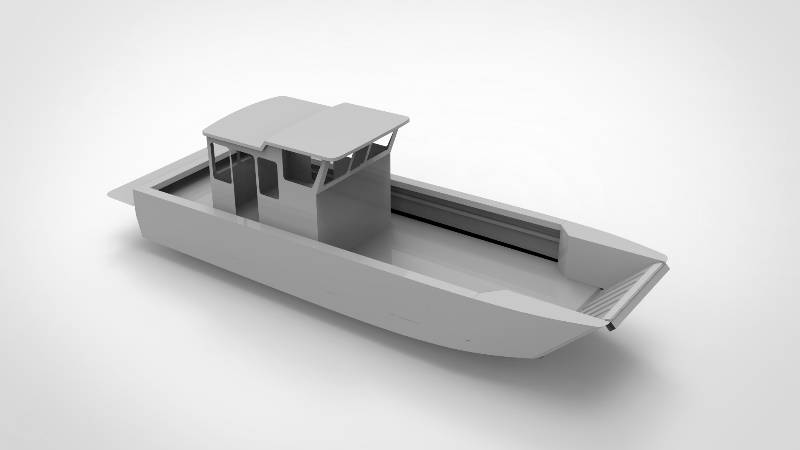

  • Photo 631

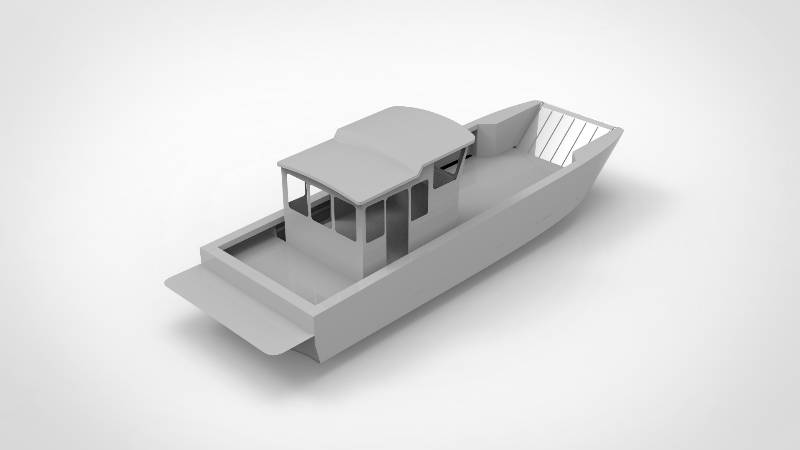

  • Photo 632

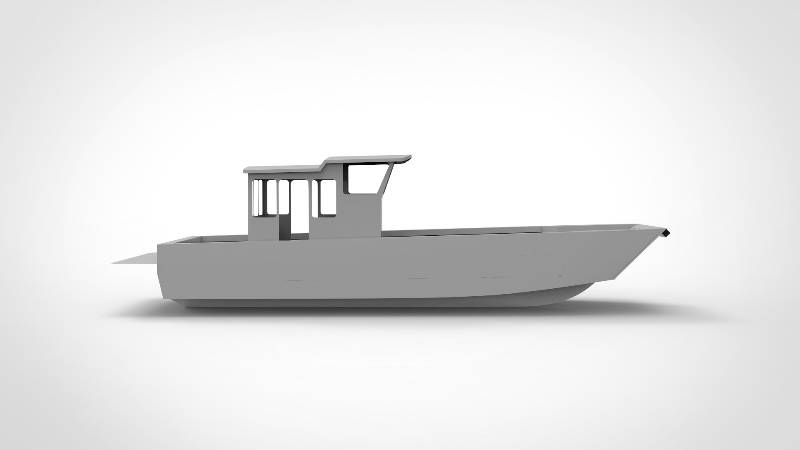

  • Photo 633

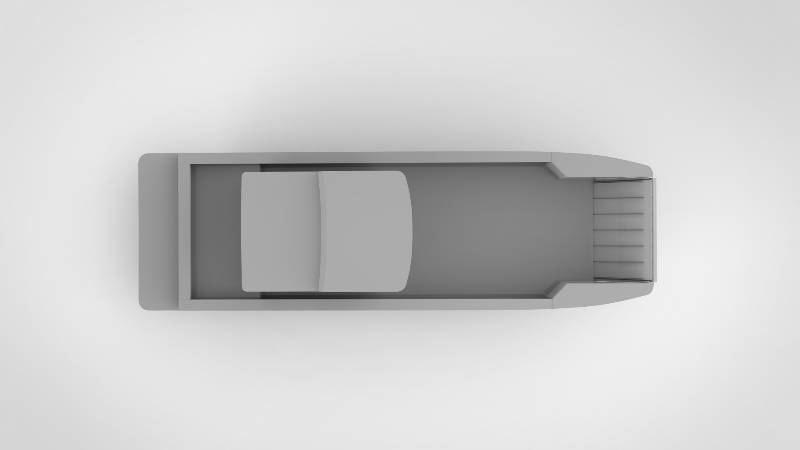

  • Photo 634

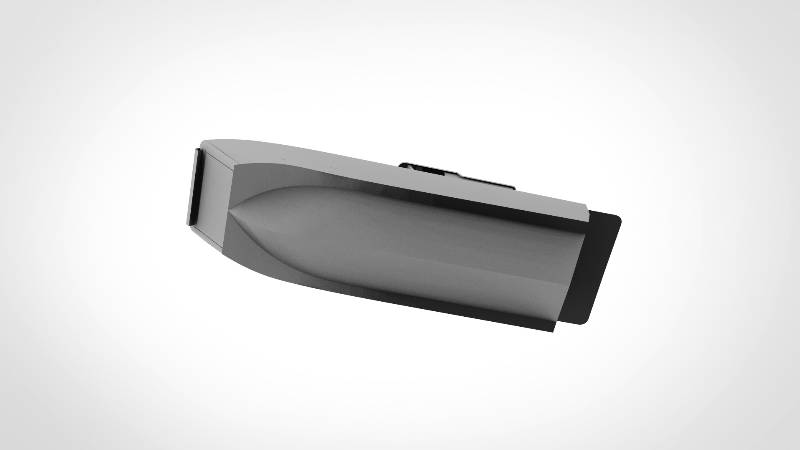

  • Photo 635

  • Photo 636

<
>
Price: $12,000.00

DETAILS

Length overall: 42ft 10in
Length on deck: 34ft 10in
Beam: 13ft 6in with gunwale pipe
Deadrise: 15 degrees
Suggested Power: Twin Volvo D6 380 hp
Door clear opening: 8ft 4in
Aluminum weight to purchase: Use aluminum plate list, jig parts list, and extrusion list on PDF study plan to calculate.

DESCRIPTIVE INFORMATION

This design is an I.O. version of design C090 Aegean 40ft Landing Craft Walk-around. Just like the outboard version, this boat can handle maximum of 10 passengers + 1 driver and the cabin has a good standing headroom. 22ft long cargo deck space is excellent for transferring equipment and/or supplies.

Spec Sheets


To order this plan, contact us at:
info@copeboatdesigns.com
Phone: 1-250-752-1724
