Cope 24ft 6in 18deg MPV
Model: 24ft 6in 18deg MPV
Design: C020

  • Photo 287

  • Photo 288

  • Photo 289

  • Photo 290

  • Photo 291

Price: $2,600.00


Length: 24ft 6n
Beam: 8ft 5n
Deadrise: 18 degrees
Power: Outboard to 250hp
Aluminum weight to purchase: approx. 3,522LBs
*extrusions are not included in this weight and can be estimated at 15% of the weight of plate.

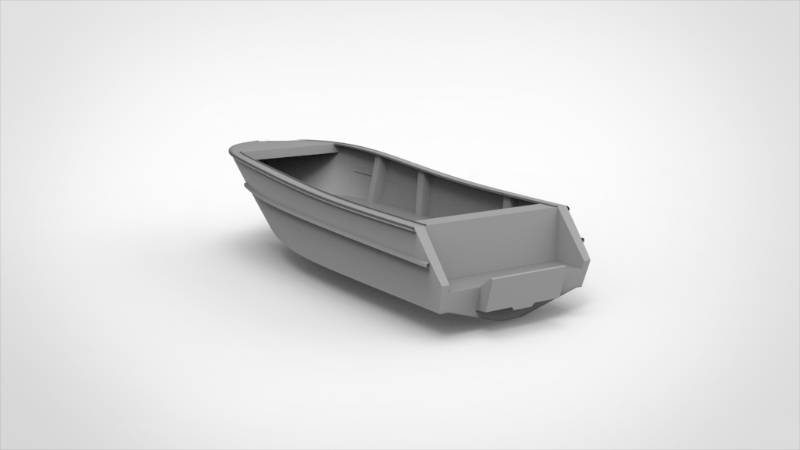

This MPV (Multi-Purpose Vessel) is a functional model which can be used for many different purposes, such as, transporting, hauling, fishing, diving, water taxi, yacht tender, search and rescue, general recreational boating, and more. The MPV model is available either as a relatively flat bottom vessel, at 8 degrees, which is ideal for beaching or where high initial stability is required, or as a moderately deep V bottom, at 18 degrees, which is ideal for use in open water or higher speed operation. Available lengths of the designs are, 22ft, 24ft 6in, and 27ft with two different deadrises as they are mentioned. With this design, you will be able to customize it to meet your needs. For example, by adding a center console or a cabin, or a windscreen you can create the boat you want.

Spec Sheets

To order this plan, contact us at:
Phone: 1-250-752-1724
