Discovery Passage 28 LC IO - 10ft 10in Cabin
Model: Discovery Passage 28 LC IO-10ft 10in Cabin
Design: C028A

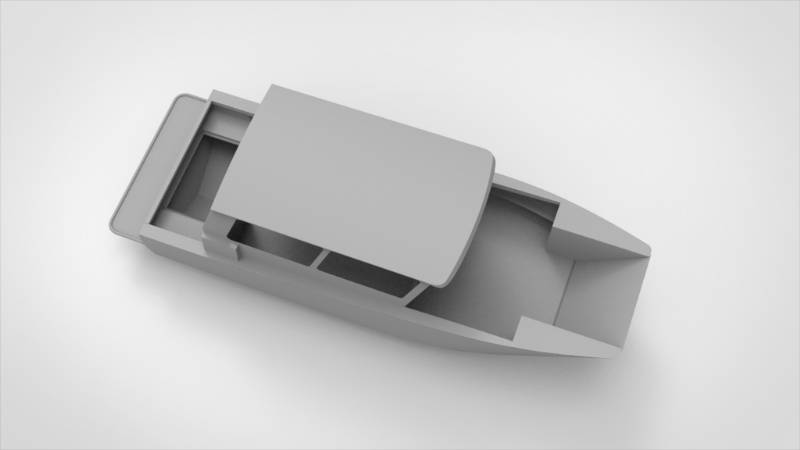

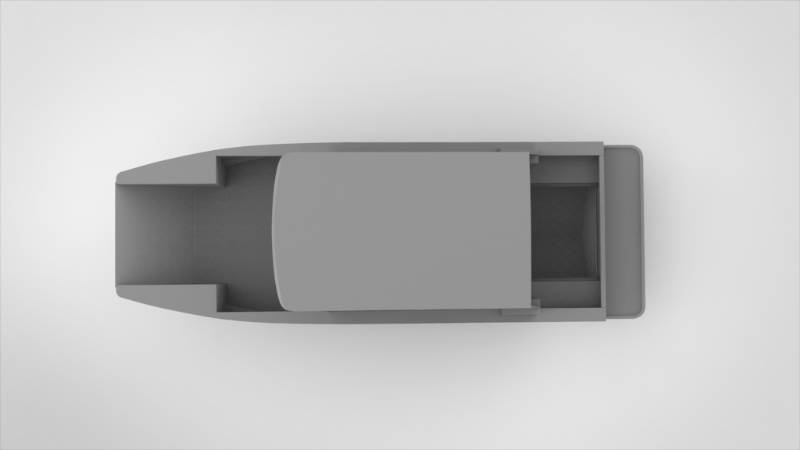

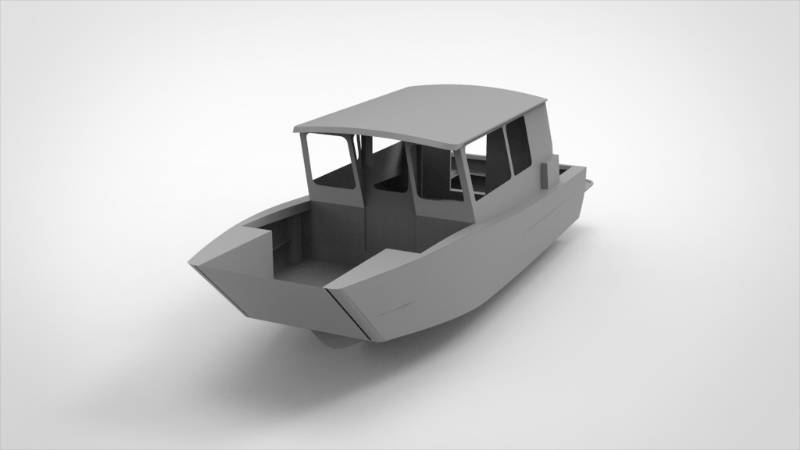

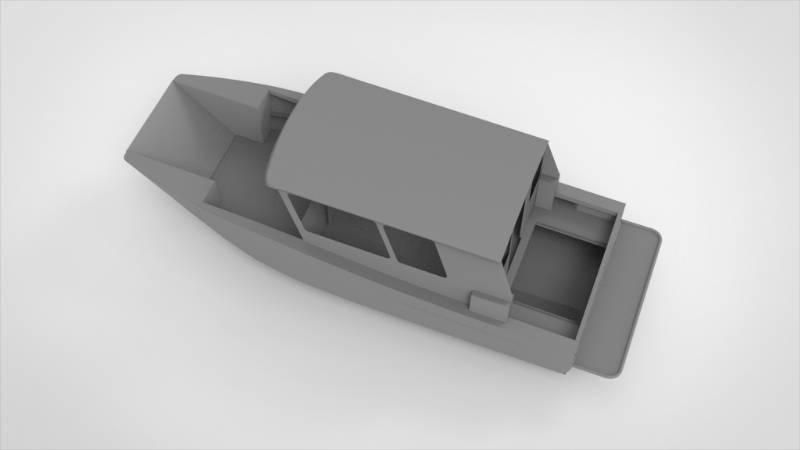

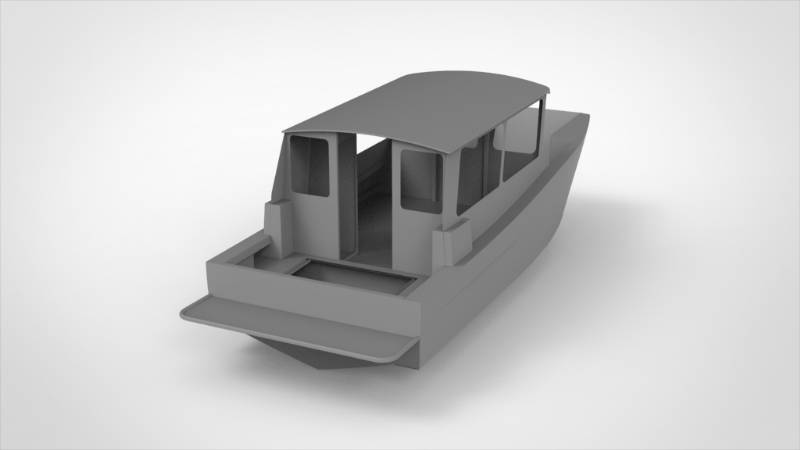

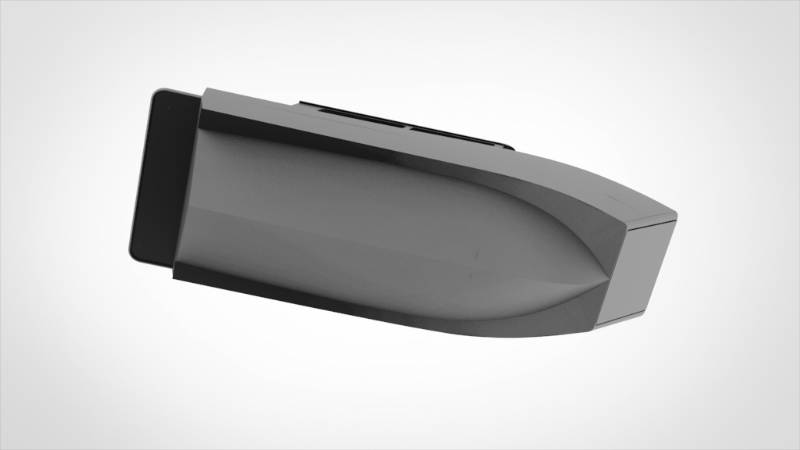

  • Photo 660

  • Photo 661

  • Photo 662

  • Photo 663

  • Photo 664

  • Photo 665

  • Photo 666

<
>
Price: $5,700.00

DETAILS

Length: 27ft 10in (30ft 5in including swimgrid)
Beam: 10ft 6in
Deadrise: 17.8 degrees at transom
Power: Single Volvo D6 330hp I/O
*extrusions are not included in this weight and can be estimated at 15% of the weight of plate.

DESCRIPTIVE INFORMATION

This is an extended cabin version of diesel inboard/outboard powered landing craft. The cabin is 2ft longer than the original C028 Discovery Passage 28 LC IO stock plan design and has a head in the port side of cabin. This stock plan is another great inboard/outboard powered landing craft for moving cargo and people.

Spec Sheets


To order this plan, contact us at:
info@copeboatdesigns.com
Phone: 1-250-752-1724
